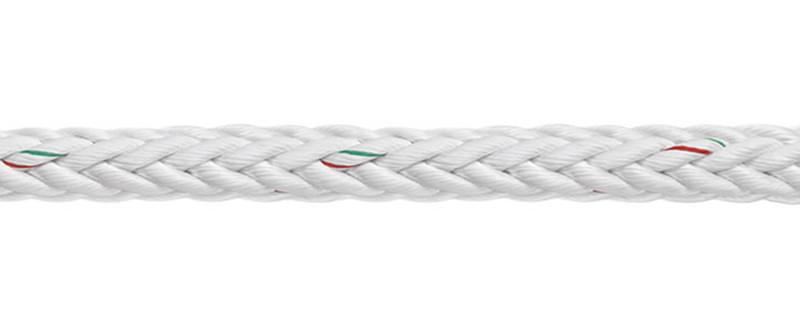

HTP-12™

Made with high-tenacity polyester fiber to provide good flex-fatigue resistance and shock absorption, HTP-12 is made with Samson's proprietary Pro-Gard marine finish for enhanced performance.

Features:
  • Easy to inspect
  • Easy to splice
  • Flex-fatigue resistant
  • Mitigates shock
  • Pro-Gard Marine Finish
Applications:
  • General Working Line /
    Vessel Mooring
  • Lifting Sling / Offshore
  • Mooring Pendant
  • Shock Line
  • Synthetic Extension
    Pendant
  • Tug Mainline
  • Tug Pendant
  • Winch Line / Offshore
  • Working Line / Offshore
Specifications:

Product Code:703

Fiber (Core/Cover):Polyester

Specific Gravity:1.38

Splice:Round Plait Class I

Manufacturer:Samson Rope Technologies, Inc.

*ISO strength specifications are for unspliced rope. All other strength specifications are for spliced rope.


Download Product PDF
Diameter (inch) Circumference (inch) Weight Per 100 Ft. (lbs) Avg. Strength (lbs) Min. Strength (lbs) Diameter (mm) Circumference (mm) Weight Per 100m (kg) Avg. Strength (kg) Min. Strength (kg) ISO 2307 Strength (metric tons)
1-1/2 4-1/2 72.0 91,800 82,600 36 108 107 41,600 37,500 41.6
1-5/8 5 93.0 113,000 102,000 40 120 138 51,300 46,100 51.3
1-3/4 5-1/2 111 136,000 122,000 44 132 165 61,700 55,500 61.7
1-7/8 5-5/8 118 145,000 131,000 46 136 176 65,800 59,200 65.8
2 6 130 167,000 150,000 48 144 193 75,800 68,200 75.8
2-1/8 6-1/2 144 181,000 163,000 52 156 214 82,100 73,900 82.1
2-1/4 7 162 210,000 189,000 56 168 241 95,300 85,700 95.3
2-3/8 7-1/8 182 231,000 208,000 57 174 271 105,000 94,300 105
2-1/2 7-1/2 198 242,000 218,000 60 180 295 110,000 98,800 110
2-5/8 8 224 267,000 240,000 64 192 333 121,000 109,000 121
2-3/4 8-1/2 257 296,000 266,000 68 204 382 134,000 121,000 134
2-7/8 8-5/8 266 317,000 285,000 70 208 396 144,000 129,000 144
3 9 292 332,000 299,000 72 216 434 151,000 136,000 151
3-1/8 9-1/2 320 361,000 325,000 76 228 476 164,000 147,000 164
3-3/16 9-9/16 355 397,000 357,000 78 232 528 180,000 162,000 180
3-7/16 10-5/16 390 430,000 387,000 84 252 580 195,000 176,000 195
