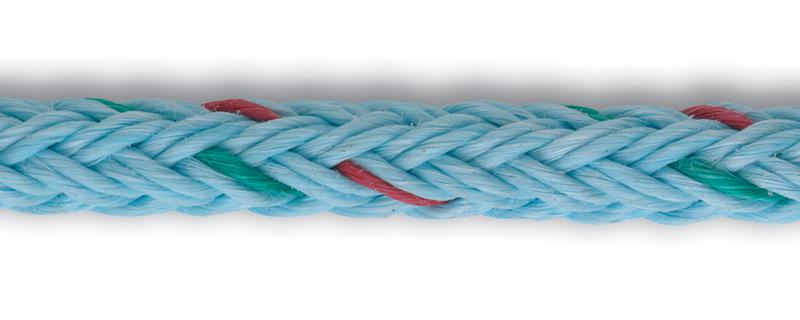

Quik-Splice™
Features:
  • 30-35% stronger than standard polypropylene
  • Abrasion resistant, especially in wet environments
  • Easy to splice
  • UV stabilized
  • Water resistant
Applications:
  • Accessory Product /
    Recreational Marine
  • Block Line
  • Hand Line
  • Other Fishing Line
  • Pulling / Stringing Line
  • Purse Seine Line
Specifications:

Product Code:335

Fiber (Core/Cover): Ultra Blue Polyolefin

Specific Gravity: 0.94 (floats)

Splice:Product Specific Class I

Manufacturer: Samson Rope Technologies, Inc.

*Specifications are for spliced strengths.
Sizes 7/16" (11 mm) and below change from 12-strand to 8-strand or 16-strand construction.


Download Product PDF
Diameter (inch) Circumference (inch) Weight Per 100 Ft. (lbs) Avg. Strength (lbs) Min. Strength (lbs) Diameter (mm) Circumference (mm) Weight Per 100m (kg) Avg. Strength (kg) Min. Strength (kg) ISO 2307 Strength (metric tons)
1/4 3/4 1.1 1,400 1,300 6 18 1.6 640 570 -
5/16 1 1.7 2,500 2,300 8 24 2.5 1,100 1,000 -
3/8 1-1/8 2.7 3,500 3,200 9 27 4.0 1,600 1,400 -
7/16 1-1/4 3.5 4,600 4,100 11 33 5.2 2,100 1,900 -
1/2 1-1/2 4.7 6,700 6,000 12 36 7.0 3,000 2,700 -
9/16 1-3/4 6.0 7,500 6,800 14 42 8.9 3,400 3,100 -
5/8 2 7.8 10,900 9,800 16 48 11.6 4,900 4,400 -
3/4 2-1/4 9.7 13,000 11,700 18 54 14.4 5,900 5,300 -
7/8 2-3/4 15.2 16,000 14,400 22 66 22.6 7,300 6,500 -
1 3 21.0 23,100 20,800 24 72 31.2 10,500 9,400 -
1-1/8 3-1/2 24.5 28,600 25,700 28 84 36.5 13,000 11,700 -
1-1/4 3-3/4 29.0 31,300 28,200 30 90 43.2 14,200 12,800 -
1-1/2 4-1/2 41.0 43,800 39,400 36 108 61.0 19,900 17,900 -
1-5/8 5 51.1 55,000 49,500 40 120 76.0 24,900 22,500 -
1-3/4 5-1/2 60.0 63,800 57,400 44 132 89.3 28,900 26,000 -
2 6 70.0 76,300 68,700 48 144 104 34,600 31,100 -
2-1/8 6-1/2 84.0 88,800 79,900 52 156 125 40,300 36,300 -
2-1/4 7 98.0 102,000 91,800 56 168 146 46,300 41,600 -
2-1/2 7-1/2 114 113,000 102,000 60 180 170 51,300 46,100 -
