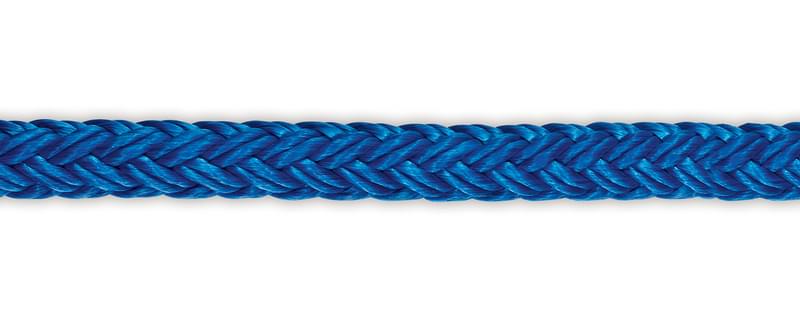

Tenex- TEC™

This construction allows more rope surface conformance to objects being lifted than standard single braid constructions. It is Samthane coated to enhance its wear life.

Features:
  • Easy to inspect
  • Easy to splice
  • Economical
  • Excellent abrasion resistance
  • Firm construction
  • Good grip
  • Higher strength per diameter than double braid
  • Low stretch
  • Samthane coated
  • Snag resistant
Applications:
  • Lifting Sling / Utility
  • Mooring Stopper
  • Rigging Line
Specifications:

Product Code:825

Fiber (Core/Cover): Polyester

Specific Gravity:1.38

Splice:12-Strand Class I

Manufacturer: Samson Rope Technologies, Inc.

*Specifications are for spliced strengths.

Download Product PDF
Diameter (inch) Circumference (inch) Weight Per 100 Ft. (lbs) Avg. Strength (lbs) Min. Strength (lbs) Diameter (mm) Circumference (mm) Weight Per 100m (kg) Avg. Strength (kg) Min. Strength (kg) ISO 2307 Strength (metric tons)
1/4 3/4 2.2 3,400 3,100 6 18 3.3 1,500 1,400 -
5/16 1 3.2 4,700 4,200 8 24 4.8 2,100 1,900 -
3/8 1-1/8 4.3 6,100 5,500 9 27 6.4 2,800 2,500 -
7/16 1-1/4 6.5 9,500 8,600 11 33 9.7 4,300 3,900 -
1/2 1-1/2 9.2 13,100 11,800 12 36 13.7 5,900 5,300 -
5/8 2 14.8 18,800 16,900 16 48 22.0 8,500 7,700 -
3/4 2-1/4 17.7 24,800 22,300 18 54 26.3 11,200 10,100 -
7/8 2-3/4 26.7 24,200 30,800 22 66 39.7 15,500 14,000 -
1 3 34.7 44,500 40,100 24 72 51.6 20,200 18,200 -
1-1/4 3-3/4 55.0 62,000 55,800 30 90 81.8 28,100 25,300 -
