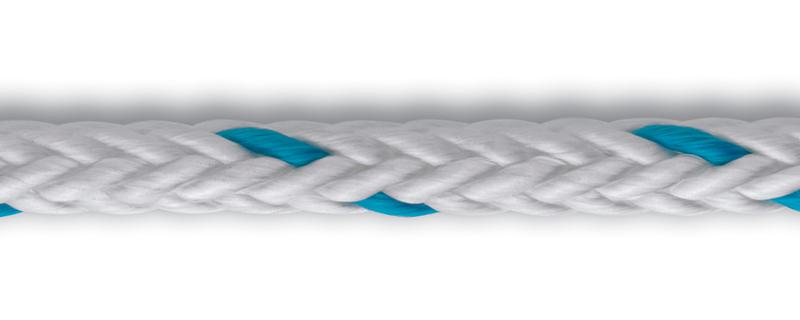

Dura-Plex™ Coated
In Dura-Plex, a 12-strand single braid, the composite strands are braided together using parallay construction to produce a rope with an excellent strength-to-weight ratio. Coating enchances abrasion resistance and provides color options.
Features:
- Abrasion resistant
- Easy to splice
- Flexible
- Good grip
- Good knot-holding ability
- Good strength compared to other "combo" ropes
- Hockle resistant
Applications:
- Hand Line
- Other Fishing Line
- Pulling / Stringing Line
- Purse Seine Line
Specifications:
Product Code:860
Fiber (Core/Cover): Polypropylene-Polyester Blend
Specific Gravity:1.2
Splice:12-Strand Class I
Manufacturer: Samson Rope Technologies, Inc.
*Specifications are for spliced strengths.
Weights are for uncoated rope. Coating adds approximately 5% to weight listed.
| Diameter (inch) | Circumference (inch) | Weight Per 100 Ft. (lbs) | Avg. Strength (lbs) | Min. Strength (lbs) | Diameter (mm) | Circumference (mm) | Weight Per 100m (kg) | Avg. Strength (kg) | Min. Strength (kg) | ISO 2307 Strength (metric tons) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 3/4 | 1.5 | 1,800 | 1,600 | 6 | 18 | 2.2 | 820 | 730 | - |
| 5/16 | 1 | 2.2 | 2,600 | 2,300 | 8 | 24 | 3.3 | 1,200 | 1,100 | - |
| 3/8 | 1 1/8 | 3.4 | 3,900 | 3,500 | 9 | 27 | 5.1 | 1,800 | 1,600 | - |
| 7/16 | 1 1/4 | 4.6 | 5,000 | 4,500 | 11 | 33 | 6.8 | 2,300 | 2,000 | - |
| 1/2 | 1 1/2 | 5.8 | 6,700 | 6,000 | 12 | 36 | 8.6 | 3,000 | 2,700 | - |
| 5/8 | 2 | 11 | 11,600 | 10,400 | 16 | 48 | 16.4 | 5,300 | 4,700 | - |
| 3/4 | 2 1/4 | 15 | 14,500 | 13,100 | 18 | 54 | 22.3 | 6,600 | 5,900 | - |
| 7/8 | 2 3/4 | 21.5 | 21,200 | 19,100 | 22 | 66 | 32 | 9,600 | 8,700 | - |
| 1 | 3 | 24.2 | 25,000 | 22,500 | 24 | 72 | 36 | 11,300 | 10,200 | - |
