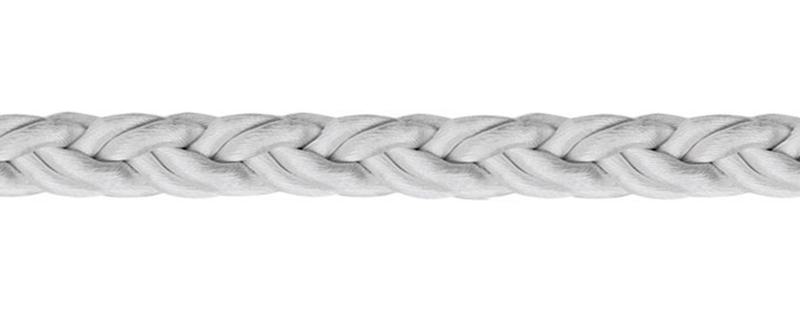

Premium Polyester-8™
This 4-stage, 8-strand plaited torque-free construction offers excellent strength, low stretch, and superior wear resistance.
Features:
- Durable
- High strength
- Low stretch
- Torque-free construction
Applications:
- General Working Line /
Vessel Mooring - H-Bitt Working Line /
Tug Assist - Mooring Pendant
- Other Fishing Line
- Purse Seine Line
- Secondary Mooring Line
- Trawl or Bridle Line
- Tug Pendant
- Winch Line / Tug
Specifications:
Product Code:258
Fiber (Core/Cover): Polyester
Specific Gravity:1.38
Splice:8-Strand
Class I
Manufacturer: Samson Rope Technologies, Inc.
*ISO
strength specifications are for unspliced rope. All other strength
specifications are for spliced rope.
| Diameter (inch) | Circumference (inch) | Weight Per 100 Ft. (lbs) | Avg. Strength (lbs) | Min. Strength (lbs) | Diameter (mm) | Circumference (mm) | Weight Per 100m (kg) | Avg. Strength (kg) | Min. Strength (kg) | ISO 2307 Strength (metric tons) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 5/8 | 5 | 84.5 | 74,000 | 66,600 | 40 | 120 | 126 | 33,600 | 30,200 | 33.6 |
| 1 3/4 | 5 1/2 | 101 | 88,500 | 79,700 | 44 | 132 | 150 | 40,100 | 36,100 | 40.1 |
| 2 | 6 | 122 | 104,000 | 93,600 | 48 | 144 | 181 | 47,200 | 42,500 | 47.2 |
| 2 1/8 | 6 1/2 | 139 | 120,00 | 108,00 | 52 | 156 | 207 | 54,400 | 49,000 | 54.4 |
| 2 1/4 | 7 | 162 | 138,000 | 124,000 | 56 | 168 | 241 | 62,600 | 56,300 | 62.6 |
| 2 1/2 | 7 1/2 | 187 | 158,000 | 142,000 | 60 | 180 | 278 | 71,700 | 64,500 | 71.7 |
| 2 5/8 | 8 | 210 | 178,000 | 160,000 | 64 | 192 | 313 | 80,700 | 72,700 | 80.7 |
| 2 3/4 | 8 1/2 | 237 | 198,000 | 178,000 | 68 | 204 | 353 | 89,800 | 80,800 | 89.8 |
| 3 | 9 | 266 | 220,000 | 198,000 | 72 | 216 | 396 | 99,800 | 89,800 | 99.8 |
| 3 1/4 | 10 | 328 | 270,000 | 243,000 | 80 | 240 | 488 | 122,000 | 110,000 | 122 |
| 3 5/8 | 11 | 396 | 325,000 | 293,000 | 88 | 264 | 589 | 147,000 | 133,000 | 147 |
| 4 | 12 | 468 | 392,000 | 353,000 | 96 | 288 | 696 | 178,000 | 160,000 | 178 |
